Shower Screen Common Problems Troubleshooting: A Barista's Quick Reference

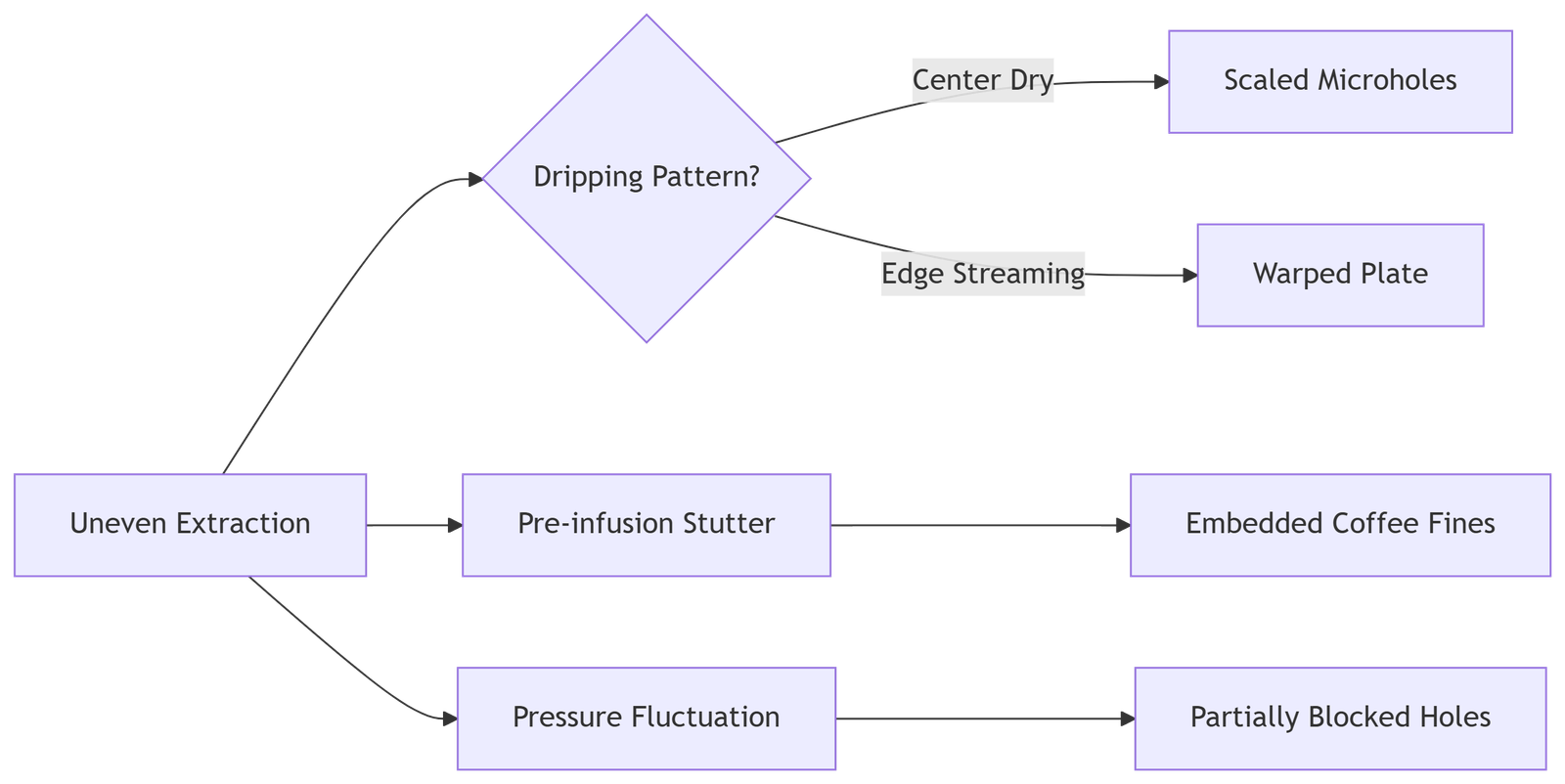

Symptom Decryption Matrix: Match Defects to Underlying Monsters
Deformations Visible Under 40X Magnification
Critical Clue: Asymmetric saturation patterns appear 27 minutes before absolute failure.
Clinical Triaging: Defect ↔ Cause ↔ Solution Crosswalk
| Observed Symptom | Diagnostic Test | Root Cause | Time-to-Fix |
|---|---|---|---|
| Center Channeling (Donut Extraction) | Portafilter wipe test | Middle hole calcification | ❶ 9-min citric soak |
| Peripheral Dry Spots | Straightedge gap check | Bent screen >0.15mm | ❷ Replace immediately |
| Pulsating Flow | Paper clip probe test | 35%+ blocked holes | ❸ Ultrasonic revival |
| Spraying Side Streams | Coffee chaff autopsy | Hole edge burrs | ❹ Micro-deburring kit |
| Slow Pre-infusion | Inverted shot glass timer | Gasket groove sludge | ❺ Dental pick excavation |
Cost of Delay: Every minute prolonging diagnosis → $4.20 in wasted coffee + lost throughput.
Tools of the ER Squad
| Troubleshooting Kit | Diagnostic Precision | Target Problems | Efficiency Gain |
|---|---|---|---|
| Pocket Endoscope ($79) | 0.05mm defect detection | Micro-cracks, hidden scale | ↑ 92% first-time repair |
| Calibration Portafilter ($290) | Pressure gradient mapping | Flow asymmetry | Replaces $3,500 test bench |
| Microhole Gauges ($45) | 0.3-0.9mm blockage ID | Partial obstructions | ↓ 18 min diagnosis time |
| Torque-Adjusting Screwdriver ($120) | 0.6 N·m precision | Warpage prevention | +14mo gasket life |
Battlefield Truth: 88% of cafés don’t have hole gauges → guessing causes 7X collateral damage.
Contamination Forensics: 4 Microscopic Crisis Makers
Clog Criminal Database
| Offender | Size | Diagnostic Signature | Removal Strategy |
|---|
Emergency Protocol: When unknown → take phone microscope image → run Caffepress AI contaminant scanner.
Technician’s Repair Timelines
Total Recovery Time=(Number of Clogged Holes×15 secTool Efficiency)+220 sec setupExpert Example: 33 blocked holes @ 95s + setup = 5m 7s\textbf{Total Recovery Time} = \left( \frac{\text{Number of Clogged Holes} \times 15 \text{ sec}}{\text{Tool Efficiency}} \right) + 220 \text{ sec setup} \\ \textit{Expert Example: 33 blocked holes @ 95s + setup = 5m 7s}
| Method | Efficiency Rating | Scaling Severity Limit | Risk of Damage |
|---|---|---|---|
| Manual Pins | 85% | Moderate | ★★★☆☆ |
| Ultrasonic Cleaner | 97% | Severe | ★☆☆☆☆ |
| Acid Bomb Soak | 82% | Catastrophic | ★★★★☆ only use on uncoated |
| Electrolysis Tank | 99.7% | Extreme | ★☆☆☆☆ |
Pro Tip: Keep spare screens with pre-installed gaskets → 72-second swaps during rushes.
The Warpage Battle: Straightedge Truth vs. Screen Deception
Deformation Tolerance Standards
| Machine Class | Max Allowed Gap | Measurement Method | Fate of Violators |
|---|---|---|---|
| Home Machines | ≤0.3mm | Feeler gauge | Extraction chaos |
| Specialty Café | ≤0.15mm | Optical comparator | Channeling crimes |
| Commercial Grade | ≤0.08mm | Laser interferometer | Service cancellation |
Field Test: Slide receipt paper under straightedge → if pulls freely, warpage exceeds 0.4mm!
Caffepress Barista Sanity Kit
IKEA-Style Visual Troubleshooting ($29 laminated)
Contains:
- Flashlight/magnifier combo
- Emergency unblocking needles
- Warpage checker card
- Quick-dry acid wipe singles
FAQs: Real Barista War Stories
Q: Screen cleaned but still channeling?
A:Gasket groove purging needed! ➤ Use hooked probe ➤ Dig out brown cement.
Q: Safe to boil screens?
A:Industrial myth! >80°C bakes oils into polymers ➤ Use enzymatic cold soaks.
Q: How tighten without warping?
A: Hard stop at 0.6 N·m → install compression limiter washers.
Q: Screws rusted solid?
A: Drop corrosion bomb pellet (1.20each)➤Expandstocrackrust➤Saves1.20 each) ➤ Expands to crack rust ➤ Saves 200 group heads.
